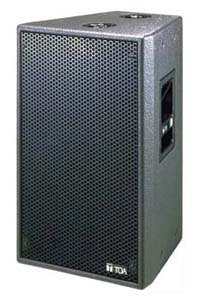

| SR-F09 Mobile Speaker System |
| Description : |
The SR-F09 is a 2-way, mobile speaker system featuring high power, high quality, and ability to stand up. It is driven by a single amplifier having a built-in passive network, and is used with the DP-0206 Digital processor.
|
 |
|
| Technical Specifications: |
| Enclosure |
Bass-reflex type |
| Power Handling Capacity |
Continuous pink noise: 200 W
Continuous program: 600 W |
| Rated Impedance |
8 Ω |
| Sensitivity |
100 dB (1 W, 1 m) |
| Frequency Response |
70 Hz - 20 kHz (when dp-0206 is used) |
| Crossover Frequency |
1 kHz (passive network) |
| Speaker Component |
Low frequency : 30 cm cone-type
High frequency : CD horn (60? horizontal × 40? vertical) fitted with compression driver |
| Input Connector |
Neutrik NL4MP × 2 and M5 screw terminal, distance between barriers: 12.2 mm |
| Finish |
Enclosure : Plywood, black, paint
Front grille : Steel plate, black, acrylic paint |
| Dimensions |
390 (W) × 619 (H) × 364 (D) mm |
| Weight |
35 kg |
| Option |
Speaker stand: 213
Stand bracket: 19582 |
|
| |
