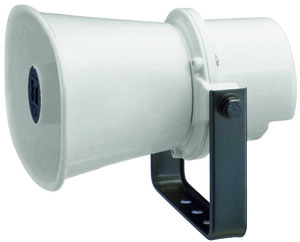

| SC-610 Paging Horn Speaker |
 |
| The SC-610 is a compact, highly intelligible speaker suited to public address announcement applications. Its external speaker component finished with powder coating, and stainless steel bracket and screws ensure the unit's weatherproof capability. |
| Technical Specifications: |
| Rated Input |
10 W (Mobile Mount use: 5 W) |
| Rated Impedance |
8 Ω |
| Sound Pressure Level |
110 dB (1 W, 1 m at 500 Hz to 2.5 kHz peak level) |
| Frequency Response |
315 Hz - 12.5 kHz |
| Sensitivity when used as Microphone 2 (0 dB=1 mW/10 dynes/cm ) |
-24 dB at 1 kHz |
| Dust/Water Protection |
IP65 |
| Polarity |
Hot: Black, Com: White |
| Operating Temperature |
-20 ? to +55 ? (must be free from dew condensation) |
| Finish |
Horn flare: Aluminum, off-white, powder coating
Reflector horn and rear cover: ABS resin, off-white
Bracket, screws and bolts: Stainless steel
Speaker cable: Polyvinyl chloride insulated cabtyre cable
(6 mm in diameter, 600 mm in length) |
| Dimensions |
172 (W) × 161 (H) × 188 (D) mm |
| Weight |
1 kg |
| Option |
Swivel bracket: YS-151S (Can be used instead of the supplied bracket.) |
|
| |
