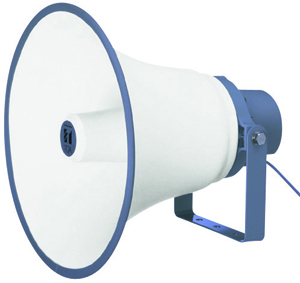

| TC-615 Reflex Horn Speaker |
 |
| The TC-615 is a highly intelligible, general-purpose speaker suited to public address announcement applications. Its external speaker component finished with powder coating, and stainless steel screws ensure the unit's weatherproof capability. |
| Technical Specifications: |
| Rated Input |
15 W |
| Rated Impedance |
8 Ω |
| Sound Pressure Level |
108 dB (1 W, 1m) |
| Frequency Response |
250 Hz - 7 kHz |
| Dust/Water Protection |
IP65 |
| Polarity |
Hot: Black, Com: White |
| Operating Temperature |
-20 ? to +55 ? (must be free from dew condensation) |
| Finish |
Horn flare: Aluminum, off-white, powder coating
Reflector horn: ABS resin, off-white
Bracket holder: Aluminum, gray, powder coating
Bracket: Steel, gray, powder coating
Rear cover: ABS resin, gray
Screw and bolts: Stainless steel
Speaker Cable: Polyvinyl chloride insulated cabtyre cable
(6 mm in diameter, 600 mm in length) |
| Dimensions |
f400 × 376 (D) mm |
| Weight |
3 kg |
|
| |
