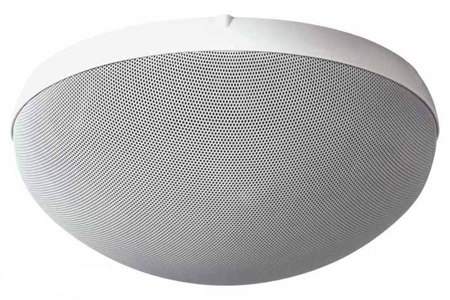

H-2WP 2-Way Surface-Mount Speaker System
Designed for outdoor-use applications, the H-2WP is a dome-shaped, small surface-mount 2-way speaker that ensures quality sound reproduction. The angle of speaker can be adjusted for 360 degrees parallel to the mounting surface. (For the installation on walls, however, keep the speaker facing down within 45 degrees left and right each.)
Technical Specifications:
Enclosure Type Sealed type
Power Handling 120 W (continuous program/4 O), 40 W (continuous pink noise/4 O)
Rated Input 12 W (16 Ω, high impedance)
Rated Impedance 4 O, 16 Ω
100 V line: 830 Ω (12 W), 1.7 kΩ (6 W), 3.3 kΩ (3 W)
70 V line: 420 Ω (12 W), 830 Ω (6 W), 1.7 kΩ (3 W), 3.3 kΩ (1.5 W)
Sensitivity 88 dB (1 W, 1 m) at installation in 1/2 free sound field
(Measured by installing the unit in the center of a wall.)
Frequency Response 100 Hz - 20 kHz
Dust/Water Protection IP64
Speaker Component Low frequency: 10 cm cone-type, High frequency: Balanced dome-type
Input Terminal Detachable screw terminal, (+)/(-) 2 each (for bridging connection)
Usable Cable Solid cable, stranded cable: 0.2 - 2.5 m? (AWG No. 24 - 14 equivalent)
Finish Punched net: Steel plate (zinc plating), white, powder coating
Frame: Fire-resistant ABS, white, paint
Base frame: Stainless plate
Dimensions f268 × 111 mm
Weight 2.1 kg (including base frame)
Accessory Base frame ……1, Electrical box mounting screw ……1 set
Usable Electrical Box 1-gang type (with cover)(*1)
Other Feature Angle of speaker: 360 degrees adjustable in parallel to the mounting surface
(The angle should be kept within 45 degrees left and right each in a downward
direction for the wall installation.)
(*1) Without using an electrical box mounting the supplied base frame directly to a wall or ceiling allows the speaker installation.
Note: Do not install the unit where it is likely to be corroded in such places as indoor pools bathrooms
