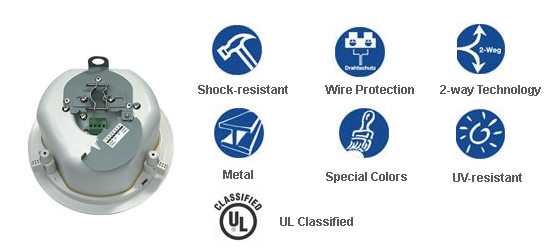

| DL BR 30-165T Plus ( Bass Reflex Speakers-Pure Sound ) |
 |
|
The DL BR 30-165/T plus are compact ceiling speakers, providing full, high quality sound for background music.
These special IC audio speakers are ideally suited for a wide variety of applications, from restaurants, coffee shops, offices and retail stores to airports. |
| Features : |
 Low distortion and a smooth, natural frequency response make the DL-BR series ideal for medium volume business music systems as well as for the medium to low SPL segments of larger or louder systems. |
| The Installation of the DL-BR speakers is quick and easy. The entire installation can be accomplished without requiring access above the ceiling and is additionally relieved by a suspension. The connection is easily done by a pluggable clamp. After mounting you can adjust the power conveniently at the front of the speakers. |
| 2-way technology with balanced frequency range. |
| All DL-BR Speakers are serially equipped with a strain-relief. |
| Robust ABS Housing. |
| Technical Specifications: |
| Technical Specifications |
DL BR 30-165T Plus |
| Power |
30/15 / 7.5 / 3.75W |
| Frequency Range |
75-24000 Hz |
| SPL 1W / 1m |
93.6dB |
| SPL Pmax / 1m |
108.2dB |
| Dimensions |
250 X 175mm |
| Ceiling Cut-out |
222mm |
| Temperature Range |
-20 0C to 800 C |
| Dispersion Angle (-10dB) |
140 0C |
| Weight |
3.58 Kg. |
| Mounting |
Screws |
| Colour |
RAL 9010 |
|
| |
