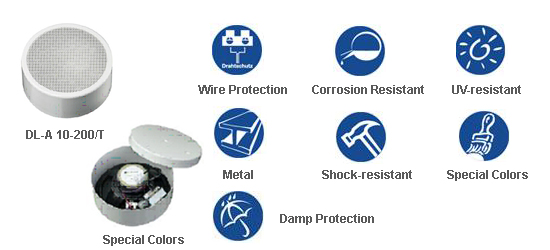

| DL-A 10-200/T (Optimal for Surface Mounted) |
 |
|
A surface-mounted ceiling speaker made of powder-coated metal in white (RAL 9010) with a high efficiency and high-quality 200 mm full range speaker.
|
| Features : |
 The DL-A 10-200/T can be installed onto walls and ceilings where built-in versions are not possible. It is a flat and well-designed speaker for unobtrusive installations. Thanks to the hidden mounting bracket there is no disturbing. |
| Equipped with a 200 mm full range speaker this product delivers excellent sound in a unobtrusive way. Benefit also from an improved frequency range of this fine speaker. |
| The optional fire dome F165 increases passive security. |
| Vandal proof, modern design. |
|
| Technical Specifications: |
| Technical Specifications |
DL-A 10-200/T |
| Power |
10 / 6 / 3 / 1.5W |
| Frequency Range |
200-17400 Hz |
| SPL 1W / 1m |
95.9dB |
| SPL Pmax / 1m |
108.7dB |
| Dimensions |
210 X 80mm |
| Temperature Range |
-200 to +800C |
| Dispersion Angle (-10dB) |
-1800 C |
| Weight |
1.69 Kg. |
| Mounting |
Screws |
| Colour |
RAL 9010 |
|
| |
