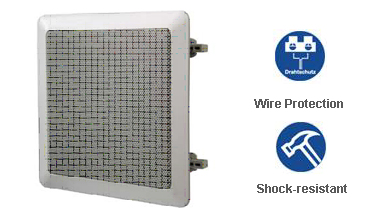

| DL-Q 10-165/T (Square Design Ceiling Speakers) |
 |
| The square design ceiling speakers made of plastic and equipped with an aluminium front grille. Sound and design are meeting high product quality for sure. |
| Features : |
 These nice ceiling speakers are fitting perfect into panel ceilings and will provide clear sound performance very discreet. |
| The speakers can be easily installed by a sophisticated mounting system, which is based on screws. The time for mounting will be reduced remarkably. |
| Perfect for panel ceilings. |
| Easy mounting. |
| Plastic speaker. |
| RoHS Compliant. |
|
| Technical Specifications: |
| Technical Specifications |
DL-Q 10-165/T |
| Power |
10 / 6 / 3 / 1.5W |
| Frequency Range |
80-11800 Hz |
| SPL 1W / 1m |
96.5dB |
| SPL Pmax / 1m |
112.2dB |
| Dimensions |
220 X 220 X 72mm |
| Ceiling Cut-out |
190mm |
| Temperature Range |
-20 0 to +800C |
| Dispersion Angle (-10dB) |
1800 (H) / 1800 (V) |
| Weight |
1.10 Kg. |
| Protection Class |
IP44 Certified |
| Mounting |
Screws |
| Colour |
RAL 9010 |
|
| |
