| LINE DRIVERS BACK |
 |
 |
|

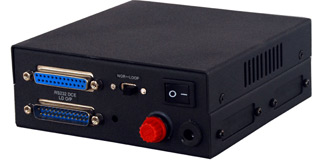

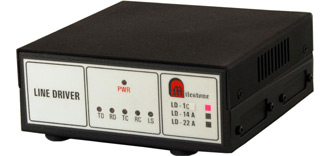

Milestone's "Line Driver" are ideal accessories providing low cost, high speed for connecting computers spread around a distance of 20 kms. This is achieved by converting RS232C signals to current loop signals. This ergonomically designed unit provides facilities such as self test, fuse, opto isolation, surge and lightning protection & auto selectable baud rate. Milestone's Line Drivers are available in various models. |
|
Ranges: |
 LD-12A / LD-22A Asynchronous Tx,Rx. |
| LD-14 / LD-24A Synchronous Tx,Rx,DTR,DSR |
| LDR1 RACK for 10 Cards. |
| Features: |
| Standard RS232C D25/D9F interface. |
Common mode rejection - 2500v peak. |
Standard o/p D25M. up to isolation, fuse,
short circuit, surge & lightening protection for
each output line saving the valuable data &
system/ terminals. |
Power 230v/ 50Hz with fuse protection. |
| Built in remote loop back test. |
Error rate - 1 bit / Million. |
Front panel power & Status indicator for active
lines. |
LED for line fault detection. |
Ergonomically designed cabinet. 130mm x
130mm
x 50mm for LD - 22A/ 24A 19" standard
rack for LDR1. |
LED for line fault detection. |
Easy installation. Baud rate - 0 - 38,400 BPS,
auto selectable. |
On line Cards removable for LDR1 model. |
| |
