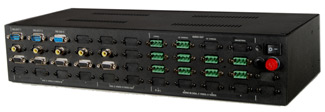

| SCALER PRESENTATION SWITCHERBACK |

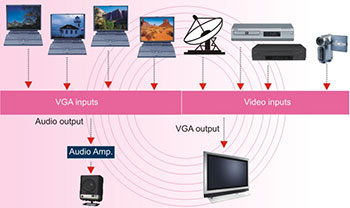

| A unit whereby multiple VGA COMPOSITE VIDEO & SVIDEO inputs along with their respective AUDIO can be switched to individual respective outputs along with their AUDIO in normal mode or by pressing a Scale mode switch one can convert video & S-Video signals into VGA signal. |
 |
 |
|
| Features |
Easy to install, 100% Plug and Play Device. |
Scaled out put on VGA port. |
| Fully compatible to VGA, SVGA, SXGA & XGA. |
Standard inputs and outputs connections. |
| Fully Compatible to Composite Video and S-Video in puts & out puts. |
Standard RCA Female Jack for C-Video. |
| Individual front panel key pad. |
4 Pin mini Din for S-Video. |
| RF Remote Controller. (optional) |
3 Pin Captive Screw connector for Audio. |
| RS232C interface. |
Operating Distance through RF remote 30 Meter. |
| LED indication for working set or inputs. |
Inbuilt SMPS, 230 V AC, 5 Amp. mains input. |
| C-Video output 1/ VGA out 1/ S-Video out-1. |
Bandwidth : VGA 300MHz, Video 320 Mhz, S-Video 320 MHz. |
| Applications: |
| Useful to convert Video / S-Video signals in to VGA. |
Useful for Home Theaters & Conference Rooms. |
| Useful for single switching solutions for any installation. |
Useful for Board Room solutions. |
| Useful for Rental Business. |
| Models Available: |
| Model |
Inputs |
Outputs |
Size |
Weight |
| |
VGA in |
Video in |
S-video |
VGA |
Video |
S-video |
|
|
| ML440 PSS |
4 |
4 |
0 |
1 |
1 |
1 |
19" 2 U |
3.5 Kg |
| ML422 PSS |
4 |
4 |
4 |
1 |
1 |
1 |
19" 2 U |
4.0 Kg |
|
| |
 |
| |
