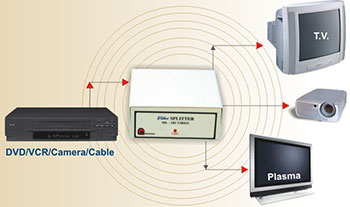

| Milestone video splitters are high performance distribution amplifier for composite video signals. Video bandwidth of 320 MHz ensures perfect video splitting. A unite whereby a single Video inputs can be multiplied / splitted to any number of gain controlled Video outputs with ability of daisy chain for multiple output. |
 |
 |
| Features: |
 Simultaneous display |
| Gain controlled output |
| Applications: |
If Any professional display system requiring
same picture on several Projectors / TV. |
Rental & staging applications. |
| CCTV and home theatre segment. |
Video duplication & recording studios. |
| Technical Specifications: |
| Inputs: |
1 Composite Video, 1Vpp / 75 on an RCA connecter |
| Outputs: |
2/4/8/16 Composite Video, 1Vpp / 75 on an RCA connecter |
| Video Bandwidth: |
320 MHz- 3dB |
| Video coupling: |
AC |
| Diff Gain: |
0.1% |
| Power Source: |
230 V.A.C. 5 Amp |
| Mains input: |
AC 230V, 5 Amp. |
| Dimensions: |
ML102 |
ML 104 |
ML 108 |
| 11cm x 10cm x 4.5cm |
18.5cm x 13 cm x 5 cm |
18.5cm x 13 cm x 5 cm |
| Options: |
19" - 1U type rack Mountable/ 19"-2U type rack mountable |
|
| Models Available: |
| ML102 Video |
| ML104 Video |
| ML106 Video |
| ML108 Video |
| (ML stand for Milestone, 102 for 1 VIDEO inputs & 2 VIDEO outputs) |
|
| |
