MPTP T100PLS

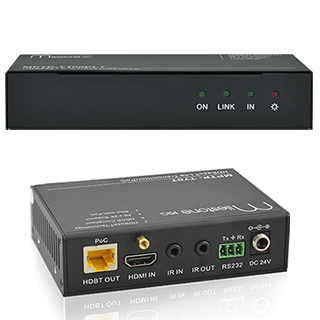

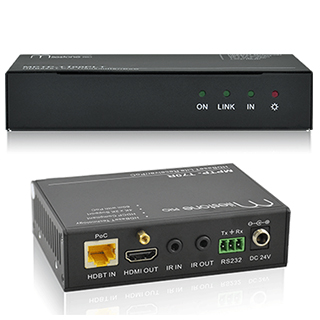

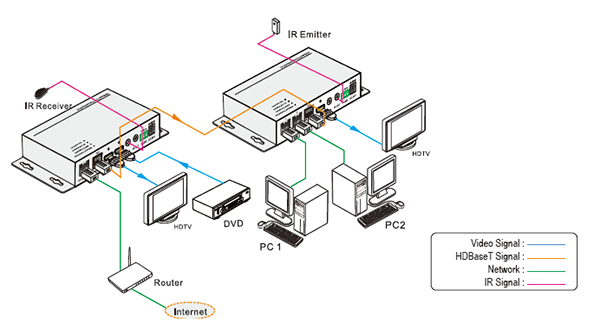

MPTP-T100PLS is a HDBaseT extender for HDMI, IR, RS232 & Ethernet up to 328ft (100m) with PoC. It includes transmitter (MPTP-T100PLT) and receiver (MPTP-T100PLR), supporting HDMI1.4 and HDCP compliant. It also has an HDMI loop output on the transmitter MPTP-T100PLS.

Features:

Integrated with HDBaseT technology.
Support HDMI1.4, 3D & 4K x 2K.
230 feet (70m) transmission for HDMI, bi-directional IR & RS232.
PoC function, from any side to the other side.
CEC pass through and HDCP compatible.
Nice cooling and ventilation design.
Locking power supply

Specification

Input (MPTP-T100PLST)	1 HDMI (HDMI female), 1 RS232 (3P captive screw connector), 1 Ethernet (RJ45), 1 IR (3.5mm mini jack).
Output (MPTPT100PLST)	1 HDBaseT (RJ45), 1 HDMI (HDMI female), 1 IR (3.5mm mini jack)
Input (MPTP-T100PLSR)	1 HDBaseT (RJ45), 1 IR (3.5mm mini jack)
Output (MPTP-T100PLSR)	1 HDMI (HDMI female), 1 RS232 (3P captive screw connector), 2 Ethernet (RJ45) , 1 IR (3.5mm mini jack).
Transmission Mode	HDBaseT
Resolution	800x600 ~ 1920x1200, 3D & 4Kx2K
Gain Transmission Distance	0dB ~ 10dB@100MHz 328 ft (100m) (max.)
Differential Phasic Erro	±10° @ 135MHz-100M
Bandwidth	10.2Gbps
Return Lost	<-30dB@5KHz
HDMI Standard	Support HDMI1.4 and HDCP1.4
Min. ~Max. Level	<0.3V ~ 1.45Vp-p; 75Ω
Power Supply	24V DC; 9.6W
Temperature	0~50ºC
Humidity	10% ~ 90%
Chassis Dimension	W152xH28xD84(mm)
