MP HDDE2Download

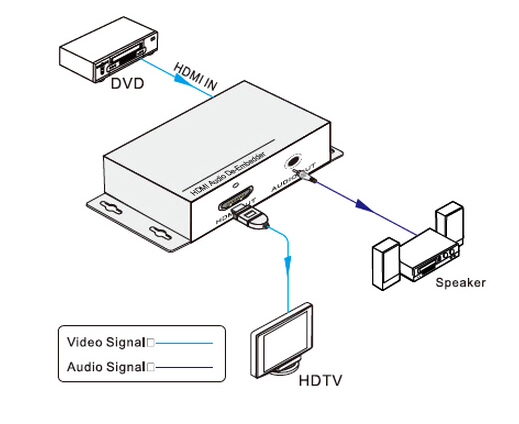

MP-HDDE2 is an HDMI audio de-Embedder, which de-embeds an analog audio out from the HDMI source.
Features:
  • HDCP Compliant
  • De-embedded analog audio output.
  • Reclock HDMI and buffer DDC.
  • Resolution up to 1080P, HDTV compatible
  • Locking power supply.
Specification

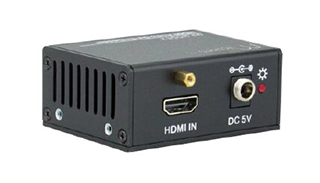

Video Input  1 HDMI (HDMI Female); T.M.D.S. 2.9V/3.3V; 50Ω

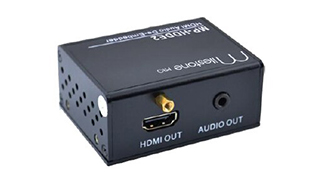

Video Output  1 HDMI (HDMI Female); T.M.D.S. 2.9V/3.3V; 50Ω
Audio Output  Stereo audio (3.5mm mini jack); 50Ω
Video Bandwidth 340 MHz (6.75Gbps)
Maximum Pixel Clock   165MHz
Max Time delay 5nS (±1nS)
Resolution Range Up to 1920x1200 or 1080P@60Hz
HDCP Compliant with HDCP, DVI1.0/HDMI 1.3 standard
CMRR >90dB@20Hz~20KHz (video)  >70dB@20Hz~20KHz (audio)
Audio Bandwidth 20Hz ~ 25KHz
Frequency Response 20Hz ~ 20KHz
SNR Max 80dB
Stereo Channel Separation >75dB@20Hz~20KHz
THD + Noise 1%@1KHz, 0.3%@20KHz
Power Supply 5V DC, 3W
Temperature 0~50ºC
Humidity 10% ~ 90%
Chassis Dimension W92xH52.5xD28mm
